Optimized for speed
Low dose and high resolution
Fully shielded
Sensorless cardiac and respiratory gating
4D imaging technology
Upgradable to PET/CT
Bore size: 10 cm
Scan time: < 4 s (ultra-fast mode), 20 s (standard mode), 1 min (high resolution scan)
Low dose: < 1 mGy
Resolution: ~ 70μm @ 10% MTF
Minimal voxel resolution: < 30μm
Transaxial FOV: > 80 mm
Axial FOV for single bed position: > 90 mm
Axial FOV for multiple bed position: > 230 mm
Dynamic 4D acquisition
Software based respiratory and cardiac gating
Bore size: 26 cm
Scan time: < 8 s (fast mode), 20 s (standard mode), 2 min (high resolution scan)
Low dose: < 4 mGy
Resolution: ~ 70μm @ 10% MTF
Minimal voxel resolution: < 55μm
Transaxial FOV: 210 mm
Axial FOV for single bed position: > 80 mm
Axial FOV for multiple bed position: > 400 mm
Dynamic 4D acquisition
Software based respiratory and cardiac gating

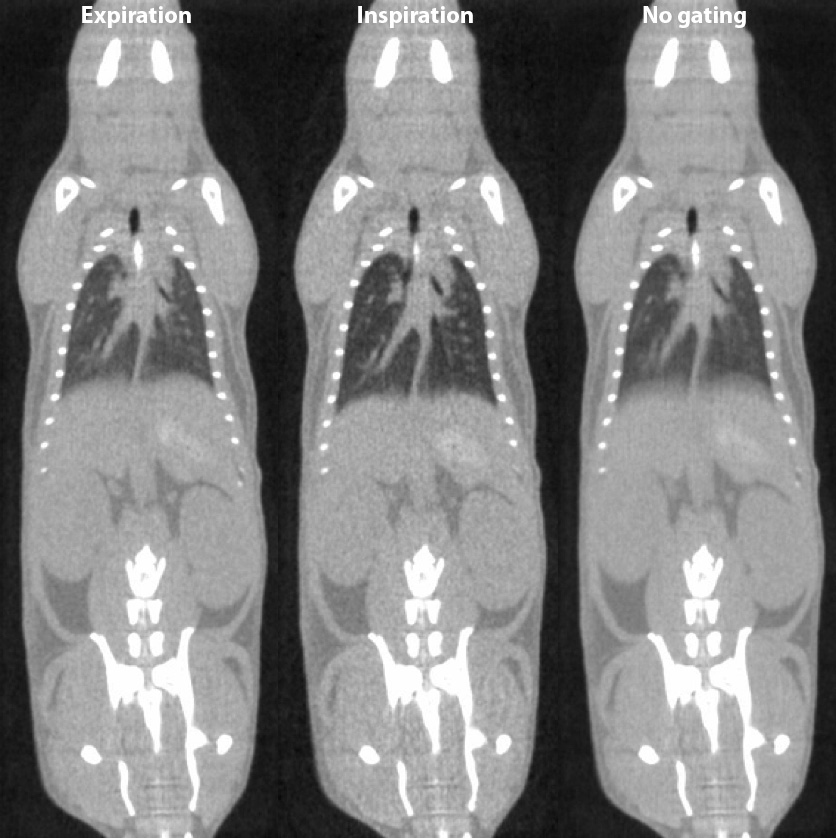

Fully automated respiratory gated imaging based on software
Mouse ~25g, 90 s total acquisition time
Fully automated sensorless respiratory gating

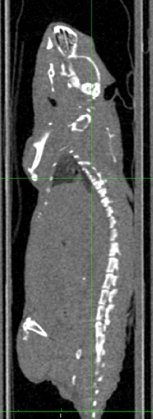

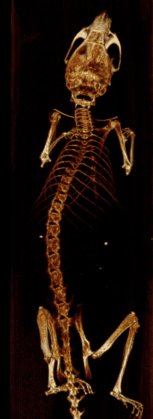

Ultrafast scan with high image quality (4s acquisition time for whole-body mouse)
Nude mouse ~ 20g, 4 s total acquisition time, total dose: ~ 3.5 mGy

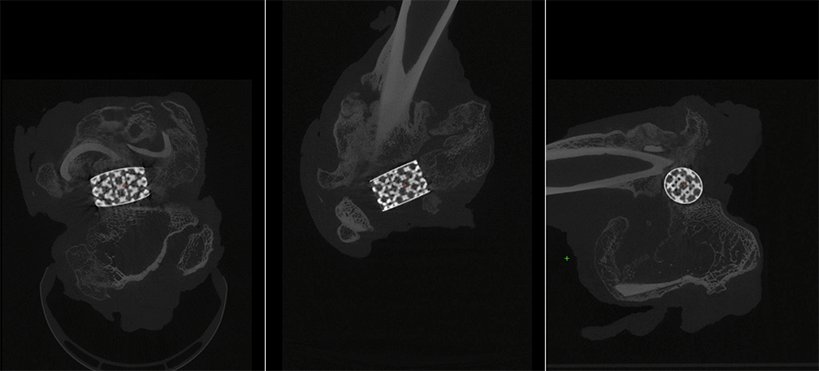

Advanced iterative reconstruction for metal artifact correction
Bone sample with titanium implant, 112 s total acquisition time
Iterative reconstruction with metal artifact correction

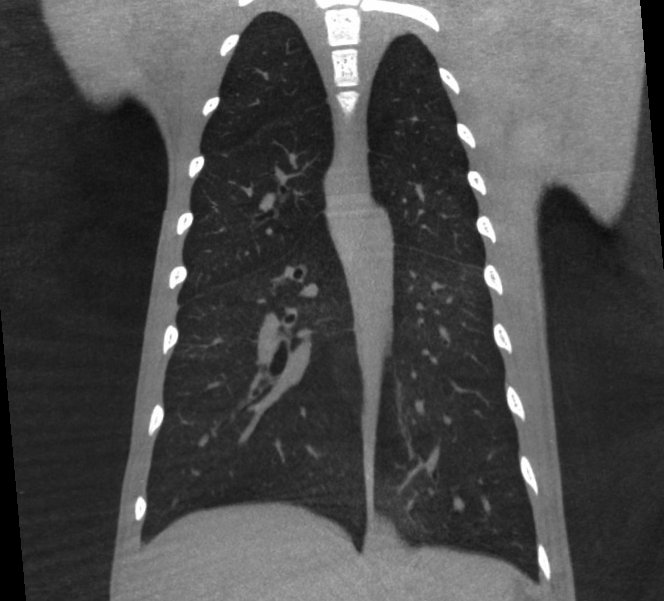

Integrated solution for breath-holding NHP lung imaging without motion artifact
NHP ~4.5kg, 98 s total acquisition time with breath-holding
